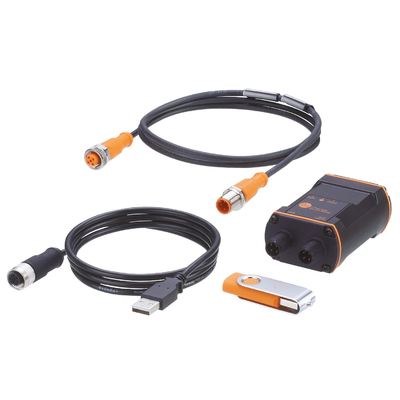

IFM ZZ1060 USB configuration kit designed
Product Details:
Manufacturer : IFM
Product No. : IFM ZZ1060
https://www.achievers-automation.com More Products
The IFM ZZ1060 is a high-performance IO-Link Master USB configuration kit designed to simplify the connection, parameterization, and data retrieval of IO-Link-enabled sensors with a P. Engineered for industrial field applications, this kit offers robust construction, intuitive operation, and reliable communication—making it an ideal solution for plant commissioning, sensor replacement, and ongoing industrial process monitorin. With rugged M12 connectors, clear LED status indicators, and compatibility with IFM’s LR DEVICE software, the ZZ1060 streamlines sensor setup, reduces downtime, and ensures accurate data transmission in harsh industrial environment
Description:
| Brand & Model |

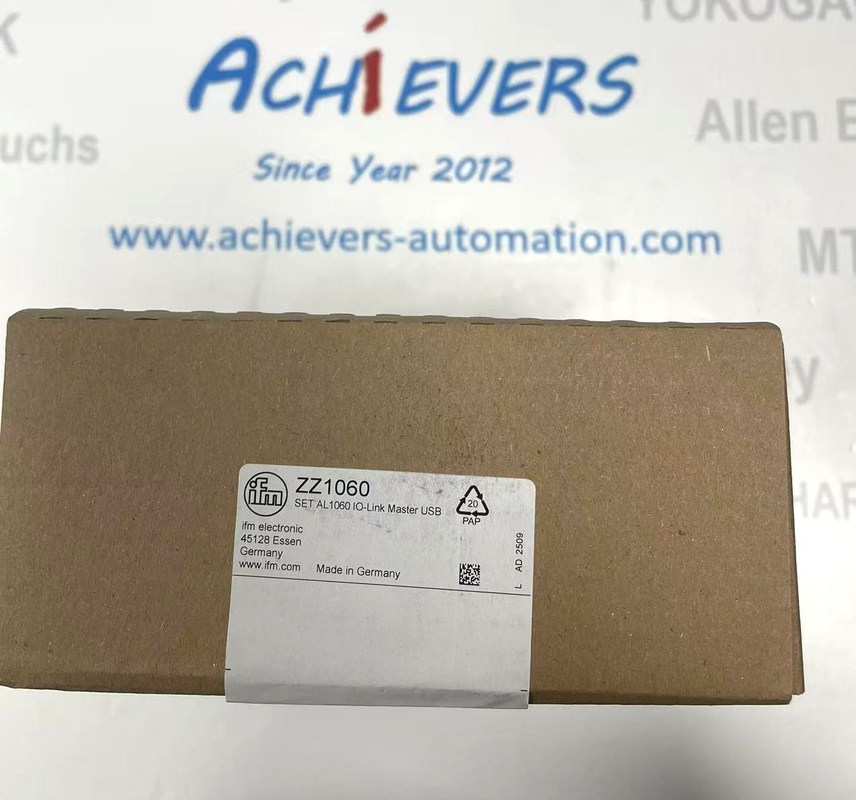

IFM ZZ1060 (IO-Link Interface SET AL1060 IO-Link Master USB) |
| Origin |
Germany |
| Application |
Parameter setting, analysis, and data retrieval for IO-Link sensors |
| Electrical Data |
- Nominal Voltage (USB): 5V DC
- Sensor Supply: 24V DC
- Current Consumption (USB): <1100 mA
- Sensor Supply (AUX) Port Current: 0.65 A
- Sensor Supply (USB) Port Current: 0.15 A
- Protection Class: III |
| Inputs/Outputs |
- Digital Inputs: 2 (IO-Link Port Class A: 1x2)
- Digital Outputs: 2 (IO-Link Port Class A: 1x2)
- Input Switching Level (High): 11-30V
- Input Switching Level (Low): 0-5V
- Max Output Current Load: 150 mA per output
- Short-Circuit Protection: Yes (inputs/outputs) |
| Interfaces |
- Communication Interfaces: IO-Link, USB 2.0
- USB Interfaces: 1
- IO-Link Transmission Types: COM1 (4.8 kbaud), COM2 (38.4 kbaud), COM3 (230.4 kbaud)
- IO-Link Revision: 1.1
- IO-Link Class A Ports: 1 |
| Operating Conditions |
- Ambient Temperature: -25 to 50 °C
- Storage Temperature: -25 to 85 °C
- Max Relative Air Humidity: 90%
- Protection Rating: IP 65, IP 67 |
| Mechanical Data |
- Weight: 388.3 g (0.72 lbs)
- Housing Material: PA (Polyamide)
- Socket Material: PA
- Lock Nut Material: Nickel-plated Brass
- Sealing Material: FKM |
| Displays/Operating Elements |
- PWR LED: 1x (Green/Red) - Power Supply Status
- IO-Link LED: 1x (Green/Red) - Communication Status
- DI/DO LED: 1x (Orange) - Digital I/O Status |
| Certifications & Standards |
- EMC: DIN EN 61000-6-2, DIN EN 61000-6-4
- Shock Resistance: DIN EN 60068-2-27
- Vibration Resistance: DIN EN 60068-2-6, DIN EN 60068-2-64 |
| Optional Accessories |
24V DC Switch-Mode Power Supply (M12 A-coded, E80121) |
