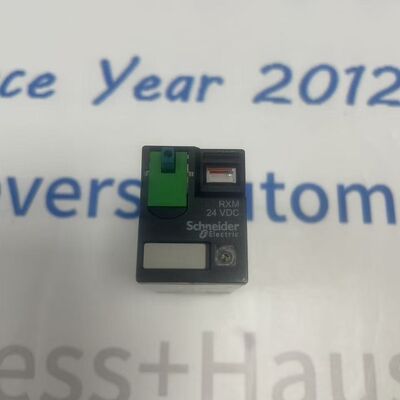

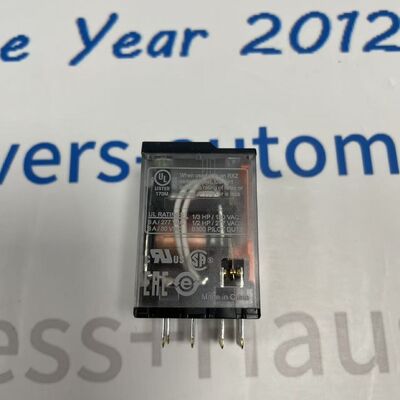

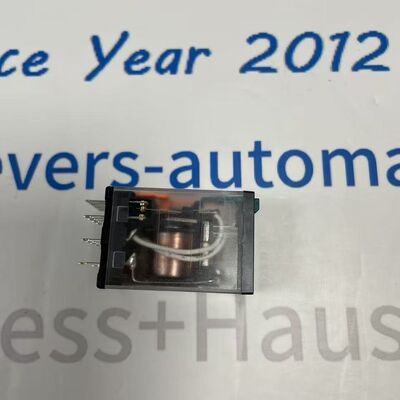

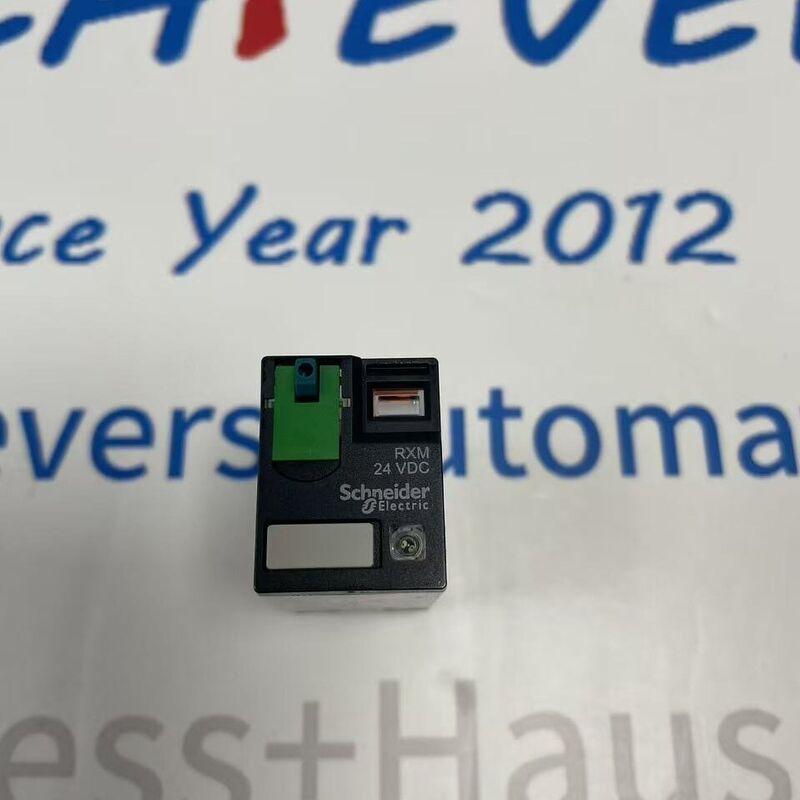

Schneider Electric RXM4AB2BD Harmony Miniature Plug-In Relay
Product Details:
Manufacturer :Schneider
Product No. : RXM4AB2BD
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Schneider Electric RXM4AB2BD is a high-performance Harmony series miniature plug-in electromechanical relay designed for industrial automation and building control systems. As a core model of Schneider Electric’s Zelio Relay product line, this 4CO (four changeover contact) relay features a 24 V DC coil voltage, integrated status LED indicator, and lockable test button. Built for reliable low-power switching and signal control, the RXM4AB2BD delivers stable 6A rated switching capacity, compact dimensional design, and comprehensive industrial-grade protection, suitable for long-term operation in complex electrical control environments.
Detail:
|
Parameter Item
|
Technical Value
|
|
Product Model
|
RXM4AB2BD
|
|
Manufacturer
|
Schneider Electric
|
|
Product Series
|
Harmony Zelio RXM Miniature Relay
|
|
Product Type
|
Plug-In Electromechanical Relay
|
|
Contact Configuration
|
4 CO (4 Changeover Contacts)
|
|
Coil Rated Voltage
|
24 V DC
|
|
Rated Switching Current
|
6 A (Conventional Thermal Current)
|
|
Status Indicator
|
Built-in LED Indicator
|
|
Test Function
|
Lockable Manual Test Button
|
|
Degree of Protection
|
IP40 (IEC 60529)
|
|
Overall Dimensions (W×L×H)
|
21 mm × 27 mm × 40 mm
|
|
Certification Standards
|
CE, UL 508, CSA C22.2 NO 14, IEC 61810-1
|
|
Technical Parameter
|
Specification Data
|
|
Coil Electrical Parameters
|
|
|
Coil Resistance
|
650 Ω
|
|
Coil Power Consumption
|
900 mW
|
|
Max Coil Operating Voltage
|
28 V DC
|
|
Contact Performance Parameters
|
|
|
Rated Switching Voltage (AC)
|
250 V AC
|
|
Minimum Switching Load
|
100 mA / 5 V
|
|
Contact Material
|
Silver Alloy (Anti-oxidation & anti-wear)
|
|
Mechanical Service Life
|
10,000,000 Operations (Typical)
|
|
Electrical Service Life
|
100,000 Operations (Rated Load)
|
|
Environmental & Mechanical Parameters
|
|
|
Operating Temperature Range
|
-40 °C ~ +55 °C
|
|
Storage Temperature Range
|
-40 °C ~ +85 °C
|
|
Operating Humidity
|
20% ~ 85% (Non-condensing)
|
|
Vibration Resistance
|
Compliant with IEC 60068-2-6 Industrial Standard
|
|
Compliance & Safety Standards
|
|
|
Industry Compliance Standards
|
IEC 61810-1, UL 508, CSA C22.2 NO 14
|
|
Safety Grade
|
Industrial Low-Voltage Control Grade
|
Brand
Schneider Electric (French: Schneider Electric, Euronext: SU) is a French multinational enterprise. It was founded in 1836. It is also one of the world's largest energy management company and one of the world's largest suppliers of optimization solutions. Its main products include circuit breakers, sensors, controllers, etc., providing overall solutions for energy facilities, industries, data centers, networks, and buildings in various countries. Among them, it is in the world's leading position in energy, infrastructure, industrial process control, building automation, data centers and networks.
Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, Pepperl+Fuchs, YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
Q:Which are the best-selling products?
A: Many brands of products have been supplied . For example, MTL safety barrier MTL5541, Endress Hauser RS33 , P+F safety barrier KFD2-SR2-Ex2.W, Hand Communicator TREXCHPNAWS1
