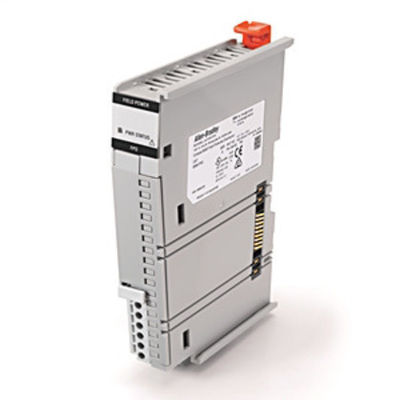

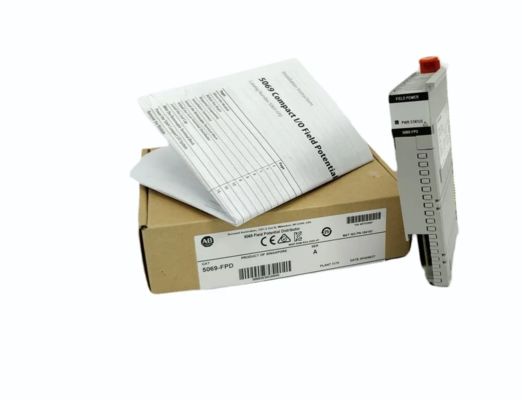

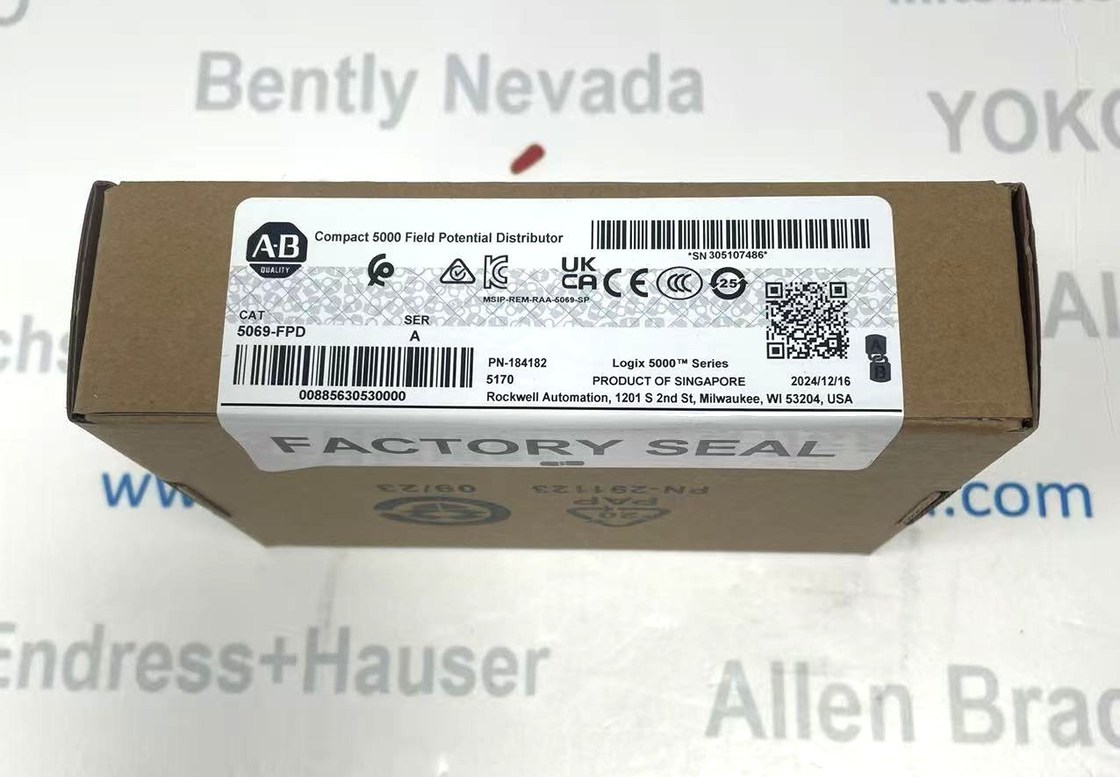

Allen-Bradley 5069-FPD AB Compact 5000 Field Potential Distributor
Product Details:
Manufacturer : ALLEN BRADLEY
Product No. : 5069-FPD
https://www.achievers-automation.com More Products
The 5069-FPD is a specialized power distribution component engineered by Allen-Bradley (AB), a core brand of Rockwell Automation, exclusively for the Compact 5000 I/O platform . As a dedicated Field Potential Distributor (FPD), its primary function is to split the field-side (SA) power on the left side of the I/O assembly and generate a new, isolated SA power section for modules on the right . This power isolation capability is critical for preventing cross-circuit interference and ensuring stable operation of connected I/O devices in industrial automation systems.
Detail:
| Manufacturer |
Rockwell Automation (Allen-Bradley/AB) |
| Catalog Number |
5069-FPD |
| Product Type |
Compact 5000 Field Potential Distributor (FPD) |
| Series Compatibility |
CompactLogix 5069 / Compact GuardLogix Systems |
| Power Ratings |
MOD Power Input: 955 mA @ 18–32 V DC
MOD Power Passthrough: 9.55 A @ 18–32 V DC
SA Power Input: 10 mA @ 0–32 V DC; 25 mA @ 0–240 V AC (47–63 Hz)
SA Power Passthrough: 9.99 A @ 0–32 V DC; 9.975 A @ 0–240 V AC (47–63 Hz) |
| Mechanical Details |
Dimensions (H×W×D): 144.57 mm × 22 mm × 105.42 mm (5.69 in × 0.87 in × 4.15 in)
Weight: 0.39 lbs (175 g)
Mounting Type: DIN rail (EN 50022 – 35×7.5 mm compatible)
Slot Width: Single slot |
| Environmental Ratings |
Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Relative Humidity: 5%–95% (non-condensing)
Altitude: Up to 6562 feet (no derating) |
| Performance & Compliance |
Power Dissipation: 4.0 watts (13.6 BTU/hr)
Isolation Voltage: 250 V AC (continuous, basic insulation)
Certifications: CCC, RCM, ATEX, IECEx, UL, CE |
| Additional Requirements |
Required Terminal Kits: 5069-RTB6-Screw or 5069-RTB6-Spring |
