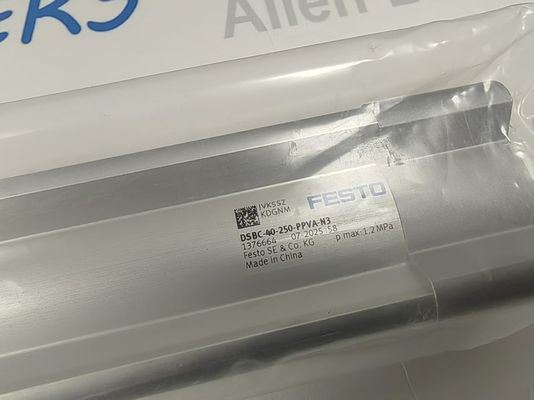

Festo DSBC-40-250-PPVA-N3 high-performance ISO standard profile cylinder engineered
Description:
Manufacturer : Festo
Product No. : DSBC-40-250-PPVA-N3
https://www.achievers-automation.com More Products
The Festo DSBC-40-250-PPVA-N3 is a high-performance ISO standard profile cylinder engineered for precision and reliability in industrial automation applications. Compliant with ISO 15552 (ISO 6431, VDMA 24562) standards, this double-acting cylinder features a 40 mm piston diameter and 250 mm stroke, delivering consistent force output for tasks like material handling, clamping, and assembly. Equipped with adjustable pneumatic cushioning at both ends and a durable construction, it adapts to dynamic load changes, reduces operational noise, and ensures extended service life in moderate corrosion stress environments. Its versatile mounting options and compatibility with proximity switches make it a flexible solution for production lines, including lithium-ion battery manufacturing systems.
Detail:
| Brand & Model |
Festo DSBC-40-250-PPVA-N3 (Global Trade Item Number: 4052568231798) |
| Type |
ISO Standard Profile Cylinder, Double-Acting |
| Core Dimensions |
- Piston Diameter: 40 mm
- Stroke Length: 250 mm
- Cushioning Length: 19 mm |
| Operating Parameters |
- Operating Pressure: 0.6 bar (0.06 MPa) to 12 bar (1.2 MPa)
- Ambient Temperature: -20 °C to 80 °C
- Operating Medium: Compressed air (ISO 8573-1:2010 Class 7:4:4)
- Lubrication: Optional (lubricated operation requires consistent use) |
| Force Output |
- Theoretical Force (Advance Stroke, 6 bar): 754 N
- Theoretical Force (Return Stroke, 6 bar): 633 N |
| Mechanical Data |
- Piston Rod Thread: M12 x 1.25 (male thread)
- Basic Weight (0 mm stroke): 740 g
- Additional Weight per 10 mm Stroke: 37 g
- Moving Mass (0 mm stroke): 205 g
- Additional Moving Mass per 10 mm Stroke: 16 g |
| Materials |
- Cylinder Barrel: Smooth-anodised wrought aluminium alloy
- Piston: Wrought aluminium alloy
- Piston Rod: High-alloy steel
- Seals (Piston/Buffer/Wiper): TPE-U (PU)
- Cover: Die-cast aluminium (coated)
- Nut/Bearing: Galvanised steel / POM
- Collar Screws: Galvanised steel |
| Connections & Mounting |
- Pneumatic Connection: G1/4
- Mounting Type: Via female thread (with compatible accessories)
- Mounting Position: Optional (any orientation) |
| Performance & Protection |
- Corrosion Resistance Class: CRC 2 (moderate corrosion stress)
- Cleanroom Class: ISO 14644-1 Class 6
- Impact Energy (End Positions): 0.7 J
- PWiS Conformity: VDMA 24364-B1/B2-L |
| Certifications & Standards |
- Compliance: ISO 15552, ISO 6431, VDMA 24562, RoHS-compliant |
