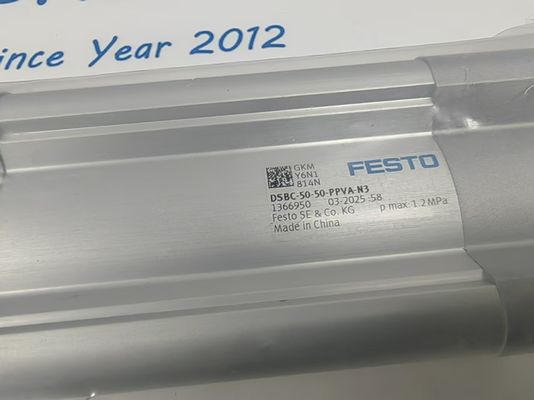

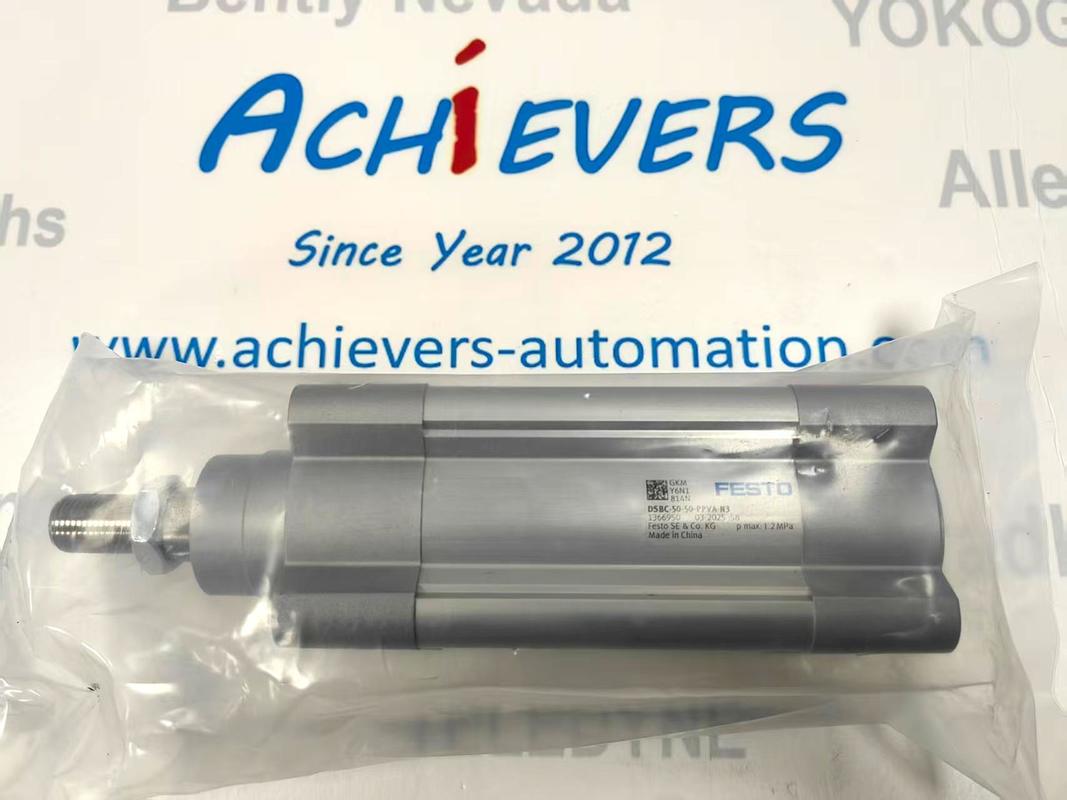

Festo DSBC-50-50-PPVA-N3 ISO standard profile cylinder designed
Description:
Manufacturer : Festo
Product No. :DSBC-50-50-PPVA-N3
https://www.achievers-automation.com More Products
The Festo DSBC-50-50-PPVA-N3 is a precision-engineered ISO standard profile cylinder designed for reliable linear motion in industrial automation. As part of Festo’s trusted DSBC series, it features a 50 mm piston diameter and 50 mm stroke, delivering robust force output for clamping, positioning, and light-duty material handling tasks. Compliant with ISO 15552 (ISO 6431, VDMA 24562) standards, this double-acting cylinder is equipped with adjustable pneumatic cushioning at both ends to minimize end-position impact and operational noise. Its rugged construction, sensor-ready design, and versatile mounting options ensure seamless integration into diverse industrial systems, from automotive assembly lines to packaging machinery.
Detail:
| Brand & Model |
Festo DSBC-50-50-PPVA-N3 (Order Code: 3431378; Alternative Reference: 1366950) |
| Type |
ISO Standard Profile Cylinder, Double-Acting, Single Piston Rod |
| Core Dimensions |
- Piston Diameter: 50 mm
- Stroke Length: 50 mm
- Cushioning Length: 22 mm |
| Operating Parameters |
- Operating Pressure Range: 0.4 bar (0.04 MPa) to 12 bar (1.2 MPa)
- Operating Medium: Compressed air (ISO 8573-1:2010 Class 7:4:4)
- Mounting Position: Optional (any orientation) |
| Force & Motion Data |
- Theoretical Force (Advance Stroke, 6 bar): 1178 N
- Moving Mass (0 mm Stroke): 365 g
- Additional Moving Mass per 10 mm Stroke: 25 g |
| Mechanical Data |
- Total Product Weight: 1.48 kg (1480 g)
- Basic Weight (0 mm Stroke): 1190 g
- Piston Rod Thread: M16 x 1.5 (Male)
- Housing Material: High-grade aluminium alloy (anodised) |
| Connections & Mounting |
- Pneumatic Connection: G 1/4
- Mounting Compatibility: Works with Festo’s full range of mounting accessories (via female thread) |
| Performance & Protection |
- Corrosion Resistance: Suitable for moderate industrial environments
- Impact Energy (End Positions): Optimized for medium-load applications |
| Certifications & Standards |
- Compliance: ISO 15552, ISO 6431, VDMA 24562, RoHS
- Country of Origin: Germany |
| Position Detection |
- Sensor Compatibility: Proximity switches
- Sensor Mounting: Integrated slot on one profile side |
Brand
Festo is a German automation company based in Esslingen am Neckar, Germany.[1] Festo produces and sells pneumatic and electrical control systems and drive technology for factories and process automation. Festo Didactic also offers industrial education and consultation services and is one of the sponsors and partners of the WorldSkills Mechatronics Competitions. Sales subsidiaries, distribution centres and factories of Festo are located in 61 countries worldwide. The company was named after its founders Albert Fezer and Gottlieb Stoll.
