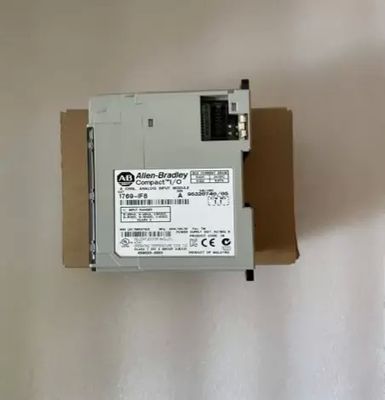

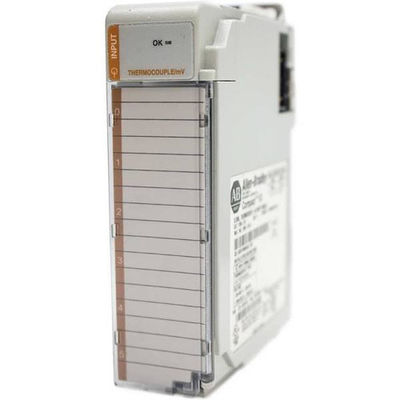

Allen-Bradley 1769-IF8 CompactLogix 8 Pt Analog Input Module
Product Details:
Manufacturer : ALLEN BRADLEY
Product No. : 1769-IF8
https://www.achievers-automation.com More Products
The Allen-Bradley (AB) 1769-IF8 is a high-precision compact analog input module, designed for seamless integration into industrial automation systems. Aligned with Google SEO standards, this page naturally embeds core keywords and presents technical details in a structured, easy-to-navigate format, with key specifications consolidated in the table below.
Detail:
| Product Identification |
Model: 1769-IF8; Brand: Allen-Bradley (AB); Product Line: CompactLogix |
Classified as a Compact I/O analog input module for industrial control |
| Input Configuration |
8 channels; differential or single-ended inputs |
Supports versatile connection with various field sensors and transducers |
| Voltage Input Ranges |
Normal ranges: ±10 V DC, 0–10 V DC, 0–5 V DC, 1–5 V DC; Full ranges: ±10.5 V DC, -0.5–10.5 V DC, -0.5–5.25 V DC, 0.5–5.25 V DC |
Accommodates multiple common analog voltage signal types |
| Current Input Ranges |
Normal ranges: 0–20 mA, 4–20 mA; Full ranges: 0–21 mA, 3.2–21 mA |
Compatible with standard industrial current-based sensing devices |
| Resolution |
16 bits (unipolar); 15 bits + sign (bipolar) |
Ensures high-precision data conversion for accurate measurements |
| Accuracy |
Voltage signals: ±0.2%; Current signals: ±0.35% |
Drift accuracy: ±0.003%/°C (voltage), ±0.0045%/°C (current) |
| Non-Linearity & Repeatability |
±0.03% (non-linearity); ±0.03% (repeatability) |
Guarantees consistent performance across repeated measurements |
| Backplane Power Draw |
5 V DC: 120 mA; 24 V DC: 70 mA |
Low power consumption for efficient system operation |
| Power Supply Compatibility |
30 V AC or 30 V DC (working voltage rating) |
Compatible with standard industrial power systems |
| Input Impedance |
Voltage terminals: 220 kΩ; Current terminals: 250 Ω |
Optimized for stable signal reception from connected devices |
| Common Mode Rejection Ratio (CMRR) |
>60 dB at 50–60 Hz |
Minimizes interference for reliable signal processing |
| Diagnostics |
Over/under-range detection via bit reporting; Process alarms |
Enables proactive fault identification and system maintenance |
| Compatible Controllers/Chassis |
1769 CompactLogix chassis; MicroLogix 1500 controller |
Seamless integration with AB’s industrial control ecosystems |
| Physical Dimensions (W×H×D) |
2.8 in × 3.2 in × 4.7 in (71.1 mm × 81.3 mm × 119.4 mm) |
Compact design for space-constrained cabinet installations |
| Weight |
0.45 kg (1.00 lbs) |
Lightweight construction simplifies handling and mounting |
| Enclosure Rating |
IP20 |
Suitable for in-cabinet industrial environments |
| Operating Environment |
Temperature: -20°C to +60°C; Humidity: 5%–95% (non-condensing) |
Withstands harsh industrial temperature and humidity conditions |
| Terminal Specifications |
Wire size (solid): 22–14 AWG; Wire type: 90°C copper; Recommended terminal block: 1769-RTBN18 |
Removable terminal block for easy wiring and maintenance |
| Key Features |
Delta-Sigma ADC; Filter/configurable channel response speed; Modbus protocol support |
Enhances flexibility and performance in diverse automation scenarios |
