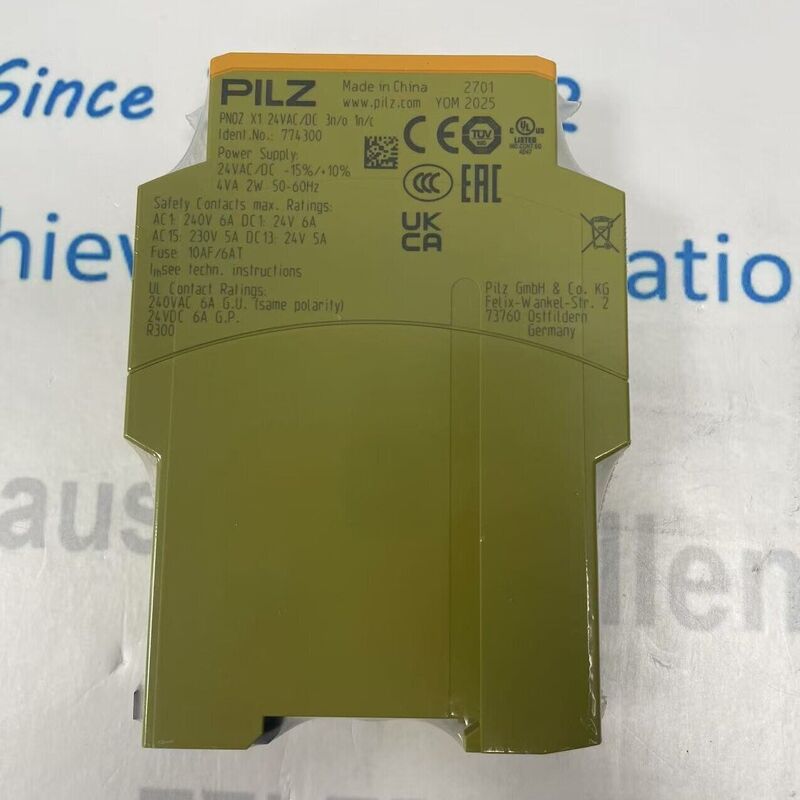

Pilz 774300 PNOZ X1 Safety Relay
Description:
Manufacturer : Pilz
Product No. : 774300
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The PILZ 774300 (model PNOZ X1) is a high-performance single-channel safety relay, belonging to PILZ’s PNOZ X product family, specifically engineered for industrial safety automation systems. As a core safety relay in PILZ’s lineup, it features 3 normally open (NO) safety contacts, 1 normally closed (NC) auxiliary contact, 24V AC/DC supply voltage, and a compact DIN rail-mountable design. This safety relay complies with the highest safety standards (PL e of EN ISO 13849-1 and SIL 3 of IEC 61508), ensuring reliable protection for personnel, machinery, and processes in diverse industrial environments where emergency stop monitoring, safety gate control, and limit switch supervision are critical.
Detail:
|
Specification Category
|
Details
|
|
Product Type
|
Single-Channel Safety Relay
|
|
Product Family
|
PILZ PNOZ X Series
|
|
Manufacturer
|
PILZ
|
|
Product Model & Part Number
|
774300 (PNOZ X1 24V AC/DC)
|
|
Mounting Type
|
DIN Rail Mountable
|
|
Terminal Type
|
Fixed Screw Terminals
|
|
Operating Temperature Range
|
-10°C to +55°C (Operation); -25°C to +70°C (Storage)
|
|
Protection Rating
|
IP20, IP40, IP54
|
|
Housing Material
|
PPO UL 94 V0
|
|
Dimensions (W×H×D)
|
22.5 mm × 87 mm × 121 mm
|
|
Safety Standards Compliance
|
PL e (EN ISO 13849-1), SIL 3 (IEC 61508), EN 60204-1
|
|
Reset Mode
|
Automatic & Manual Reset
|
|
Performance Parameter
|
Value
|
|
Supply Voltage (UB)
|
24V AC/DC, -15%/+10% Tolerance
|
|
Power Consumption
|
4.0 VA (AC); 2.0 W (DC)
|
|
AC Frequency Range
|
50 Hz - 60 Hz
|
|
Number of Safety Contacts
|
3 (Instantaneous, Normally Open - NO)
|
|
Number of Auxiliary Contacts
|
1 (Instantaneous, Normally Closed - NC)
|
|
Contact Current Rating
|
8 A
|
|
Nominal AC Contact Voltage
|
240 V AC
|
|
Nominal DC Contact Voltage
|
24 V DC
|
|
Contact Material
|
Silver-Tin Oxide, Gold-Plated
|
|
Tightening Torque (Screw Terminals)
|
0.60 Nm
|
|
SVHC Compliance
|
No SVHC (as of 21-Jan-2025)
|
